24-Hour Self-Service Water Supply

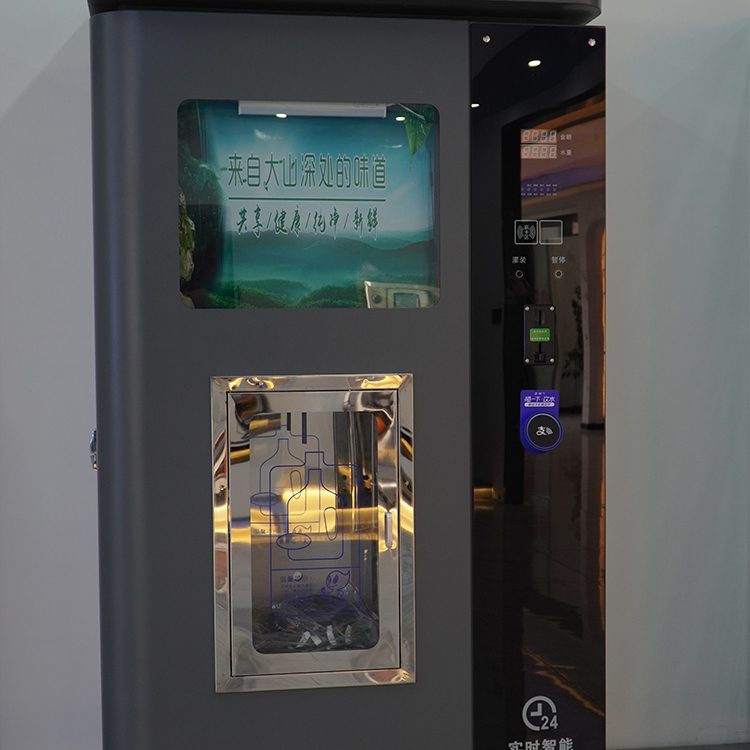

1600 GPD Community Water Vending Machine
With a daily processing capacity of 1,600-gallon system is designed for community water supply points and outdoor self-service water projects, integrating reverse osmosis purification, UV and ozone disinfection, water storage, and configurable payment functionality. The final configuration will depend on the influent water quality, local climate, voltage, and payment requirements.
1600 GPD
24-hour unmanned operation
RO + UV purification
Integrated purification, storage, payment and dispensing
Configurable payment methods
Water storage
180 L*2PCS
Water Production
1,600 GPD（Suitable for ≤500 users）
Insulation system
Three-in-one insulation (-40℃ low temperature protection)
Water quality testing
Real-time data monitoring + IoT control
INTEGRATED SYSTEM
Purify, Store and Vend in One Machine
The product combines water treatment and customer-facing vending functions in one outdoor self-service unit.
01 · PURIFY
RO + UV Water Treatment
Integrated PP, UDF, CTO, PP, RO, T33 and UV treatment before storage and dispensing.
02 · STORE
Water Storage
Built-in independent water tank storage meets customers’ needs for on-demand water use.
03 · VEND
Unmanned Dispensing
Configured payment functions allow customers to obtain water without a permanently staffed sales counter.
CURRENT PRODUCT DATA
Water Vending Machine Specifications
Product Name
Community Water Vending Machine
Water Production Capacity
1,600 GPD (approximately 6,060 L/day)
Water Tank Capacity
Dual 180 L tanks
Water Tank Material
Stainless steel / PVC
Main Unit Material
Galvanized sheet / Custom
Insulation System
Supports operation at -40℃
Filtration Process
PP + UDF + CTO + PP + RO + T33 + UV
Voltage
110V / 220V / 380V / Custom
Inlet Water Source
Tap Water
Inlet Water Pressure
0.2–0.4 MPa
Payment
Coins, cards, QR codes
Warranty
1 year
Note: The system’s processing capacity can be customized to your needs [e.g., 800-1600 GPD], as well as the number of filling ports [1-3pcs].
PURIFICATION PROCESS
Integrated Treatment Before Dispensing
10 core filtration stages + 2 sterilization processes helps provide stable treated-water quality
Feed Water
→
PP
→
UDF
→
CTO
→
PP
→
RO
→
T33
→
Ozone+UV
→
Storage
→
Dispensing
CUSTOMER EXPERIENCE
Simple Self-Service Water Purchase
01
Bring Container
Place a suitable container at the dispensing position.
02
Choose Payment
Use the payment method configured for the local project.
03
Dispense Water
Start dispensing treated room-temperature or cold water.
04
24-Hour Access
The vending concept supports unmanned customer access.
Payment Methods
Configure the Local Vending Experience
The exact payment system should be confirmed according to machine version and the destination market.
Coin Acceptor
Configured for supported local currencies
Prepaid/NFC Card
Optional according to machine version
QR Code
Requires integration with a compatible local payment provider
WATER VENDING BUSINESS MODEL
Estimate Local Water-Sales Revenue
Enter the corresponding traffic and sales price to get an intuitive sales forecast.
This estimates gross sales only. A real business plan should also include source-water cost, electricity, filters and RO membrane, rent, payment fees, cleaning, maintenance, taxes and machine investment.
Gross Water-Sales Estimate
Updates automatically from the values on the left.
APPLICATIONS
Where This Water Vending Machine Fits
Community Water Points
Self-service purified-water access for residential areas and community projects.
Outdoor Water Supply
Unattended water dispensing where a staffed retail counter is not practical.
Local Water-Sales Projects
Projects combining treatment, storage, payment and vending in one unit.
WHY AQUACLARION
Water-Treatment Expertise Behind the Vending System
- Integrated RO water treatment and vending-machine configuration
- Available voltage options include 110 V, 220 V and 380 V, subject to the destination market and final machine configuration.
- Supports operation at -40℃
- Factory testing before packing and shipment
- Online and video technical support
- Customization according to project requirements
BEFORE QUOTATION
Tell Us Your Local Project Requirements
Country, voltage, feed-water source, expected daily sales, whether cold water is required, preferred payment method, vending windows and cabinet / branding requirements.
Water Vending Machine FAQ
Yes. A 1600-gallon/day configuration is suitable for community water supply points and commercial self-service locations with high daily water consumption. Recommended storage capacity, number of outlets, and other configurations should be selected based on anticipated peak water consumption.
Yes. The number and arrangement of dispensing outlets can be customized according to customer traffic, cabinet size and project requirements. The required filling speed and peak-hour demand should be provided before quotation.
Replacement intervals depend on feed-water quality, operating hours and maintenance practices. Sediment and carbon filters usually require more frequent replacement, while RO membrane life depends heavily on pretreatment and cleaning. A project-specific maintenance schedule should be provided with the final configuration.
Routine work includes replacing filters, checking the RO membrane, cleaning and disinfecting storage tanks and dispensing outlets, inspecting pumps and valves, and verifying payment and monitoring functions. Maintenance frequency should follow local water-quality requirements and actual operating conditions.
Yes. Treated water is normally produced into the storage tank and can be dispensed while the treatment system continues operating. Appropriate tank-level controls help manage automatic production and prevent dry running or overflow.
The entire system employs a three-in-one insulation technology, enabling it to operate at temperatures as low as -40℃.
BUILD YOUR WATER VENDING PROJECT
Get a Configuration for Your Market
Tell us your destination country, feed-water source, required daily capacity, voltage and preferred payment method to receive a project-specific configuration.
