Industrial Commercial RO Systems

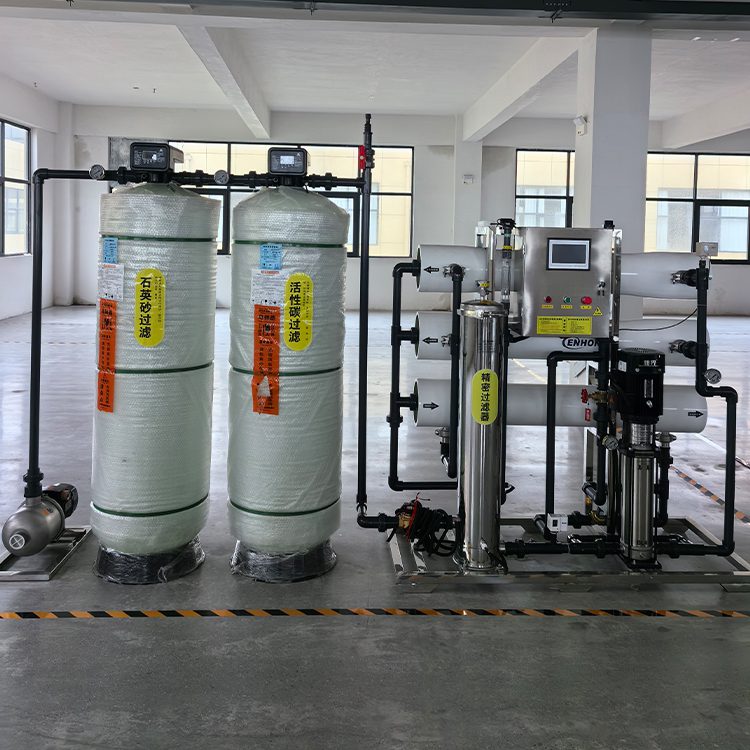

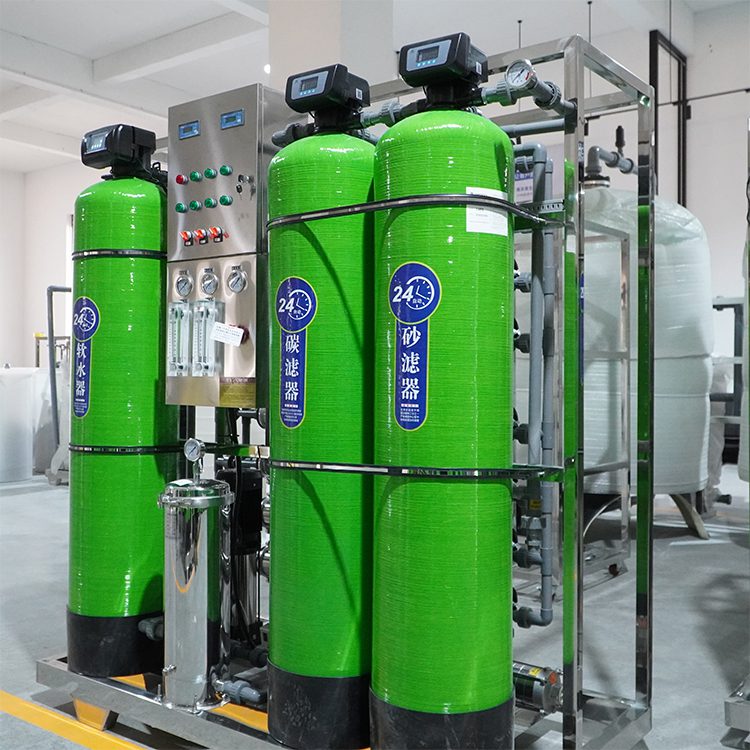

2–3 TPH Industrial Commercial RO System
A configurable 2-3 TPH Industrial Commercial reverse osmosis system for process water, food and beverage production, bottled water, hotels, hospitals and other commercial applications. Pretreatment, membrane array and automation are selected according to feed-water analysis and required product-water quality.
2,000–3,000 L/h nominal capacity
MMF Pretreatment
ACF Pretreatment
Resin Softening
RO Membrane Filtration
Factory tested before shipment
BUILT AROUND YOUR WATER
Not Just a Standard 2–3 TPH RO Machine
The same 2,000–3,000 L/h output can require very different pretreatment and membrane configurations depending on whether the source is tap water, borehole water, groundwater or brackish water.
Feed Water First
We review TDS, hardness, iron, manganese, silica and other key indicators before final system selection.
Application-Based Design
System configuration is matched to your use case such as drinking water, food processing, water stations or general industrial production.
Expandable Configuration
Pretreatment, UV, ozone, dosing, softening and polishing stages can be added when required by the water quality or final standard.
Core Components of an RO System
Pump brands, piping materials and RO membrane options can be selected according to project budget, water quality, hygiene requirements and local service preferences.
Water Pump
Choose the pump brand according to project budget, duty point, local service requirements and customer preference.
Pipe Material
Select piping based on hygiene level, corrosion resistance, project budget and application requirements.
RO Membrane
Select piping based on hygiene level, corrosion resistance, project budget and application requirements.
TYPICAL CONFIGURATION
2–3 TPH RO System Specifications
The table below shows a typical configuration. Final configuration should be confirmed from the actual water analysis and project requirements.
- Product Type2–3 TPH Industrial Reverse Osmosis System
- Nominal Capacity2,000–3,000 L/h (2–3 m³/h)
- Feed WaterTap water / groundwater / borehole water / other sources after assessment
- RO StageSingle-pass RO as standard concept; double-pass available when required
- AutomationManual / automatic control options according to project requirement
- PretreatmentConfigured according to water analysis
- Membrane SelectionMultiple 4040 elements or an 8040 configuration selected according to feed-water quality, recovery target and operating pressure
- Recovery RateDepending on the raw water conditions and membrane design
- Product Water QualityDepends on feed-water TDS, design and required final standard
- CustomizationSkid material, pumps, dosing, UV, ozone, tanks and controls etc...
TREATMENT PROCESS
How a 2–3 TPH RO System Works
- Raw Water
- Pre-treatment
- Cartridge Filtration
- High-Pressure Pump
- RO Membranes
- Product Water
DESIGN EXAMPLE
From Water Analysis to System Configuration
Instead of selling one fixed machine to every customer, Aquaclarion first reviews the water source and target water quality, then selects the pretreatment and RO configuration.
APPLICATIONS
Where 2–3 TPH Capacity Fits
A 2–3 TPH RO system is a practical capacity for medium commercial and industrial water projects. Daily output depends on operating hours, recovery rate and site conditions.
- Medium bottled or bagged water production lines
- Hotels, hospitals, schools, resorts and water stations
- Food and beverage process and ingredient water
- Borehole or groundwater purification projects
- General industrial rinse, boiler-feed or process water
Add Your Heading Text Here
WHY AQUACLARION
Designed for Real Project Conditions
- 10+ years of industrial water treatment experience
- Solutions supplied to customers in 78+ countries
- Water-analysis-based equipment selection
- Factory testing before packing and shipment
- Installation manuals, videos and remote technical support
What we need before quotation
Send your feed water source, water analysis report if available, required capacity, application and target water quality. This allows us to recommend a more accurate system instead of guessing from TDS alone.
How much water can a 2–3 TPH RO system produce per day?
Actual daily production depends on operating time, feed-water conditions, recovery rate, maintenance status and system design. At a nominal output of 2,000–3,000 L/h, 10 operating hours can produce approximately 20–30 m³ of treated water.
Can this system treat borehole water?
Yes, but borehole water should be evaluated first. Iron, manganese, hardness, silica, TDS and microbiological conditions may change the required pretreatment.
What recovery rate should I expect?
With regard to recovery rates, the industry standard for a single reverse osmosis membrane is 15 % However, the actual recovery rate depends on water quality and membrane design.
Can the system be customized?
Yes. Pretreatment, control mode, structural materials, pumps, valves, dosing, UV, ozone, storage and post-treatment can be customized for the project.
What information is required for a quotation?
Feed water source, water analysis if available, target capacity, application, operating hours and required product water quality are the most useful starting points.
