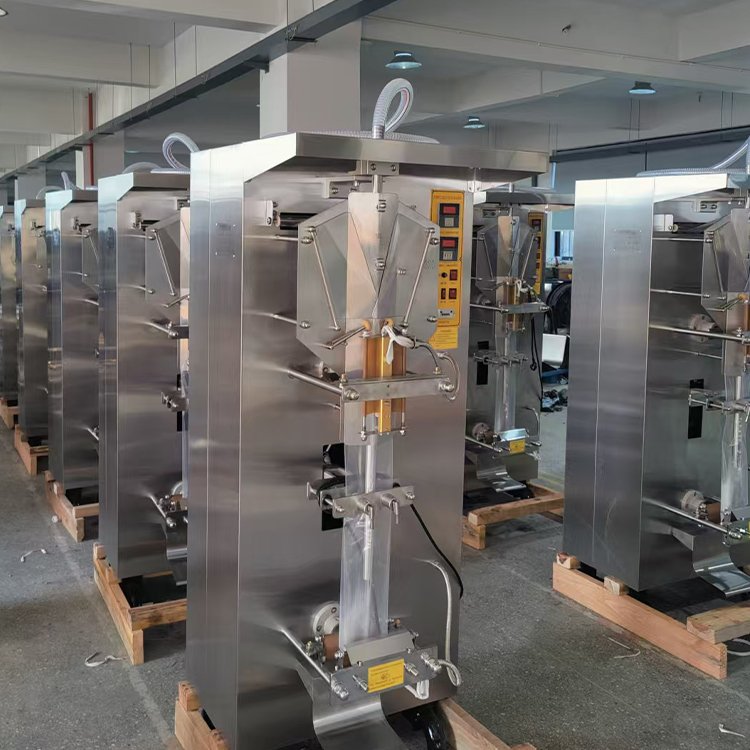

Automatic Sachet Water & Liquid Pouch Packing Machine
An automatic sachet water & liquid pouch packing machine designed to complete bag sterilization, bag forming, date printing, quantitative filling, sealing, cutting and counting in one continuous process.
33–37 bags/min
Automatic bag forming & filling
Thermal cutting
Stainless-steel machine body
Customized filling capacity
Filling Capacity
50-500ML
200-100ML
Production Speed
33-37Bag/Min
19-22Bag/Min
Sealing Method
Back seal
Operating mode
Automatic operation + counting
Integrated Packaging Process
From Empty Film to Sealed Liquid Pouch
This product integrates filling, cutting, hot stamping, and sterilization into a single unit, and supports the filling of various liquids.
01 · FORM
Automatic Bag Forming
The machine forms the pouch from packaging film before filling, reducing manual bag preparation.
02 · FILL
Quantitative Filling
Liquid is filled into the formed pouch as part of the automatic production cycle.
03 · SEAL
Seal, Cut & Count
Heat sealing, cutting and counting are completed automatically after the filling stage.
CURRENT PRODUCT DATA
Liquid Pouch Packing Machine Specifications
Use the selected machine model as the final source of truth for cabinet size and overall purification capacity.
| Product Name | Sachet water filling machine |
| Model | SJ-1000 / SJ-2000 |
| Material | Stainless Steel |
| Room-temperature Tank | 200 L |
| Technology | Thermal Cutting |
| Package Speed | 33-37 bags/min 19-22 bags/min |
| Sealing Form | Back Sealing |
| Voltage | 110V / 220V / Custom |
| Rated Power | 2.1-2.5 kW |
| Weight | 275 kg / 380 kg |
| Support | Online support / Video technical support |
| Warranty | 1 year |
Note: If you require a ribbon coding machine, please let us know in advance.
AUTOMATIC WORKFLOW
One Continuous Packaging Cycle
01 · UV
UV Sterilization
Ultraviolet sterilization is included in the listed automatic process.
02 · FORM
Bag Formation
Packaging film is formed into the pouch shape.
03 · PRINT
Date Printing
Date printing is included in the automatic workflow.
04 · FILL
Quantitative Filling
The liquid product is filled into the formed pouch.
05 · SEAL
Heat Sealing
Sealing temperature is described as automatically controlled.
06 · CUT
Thermal Cutting
The sealed pouch is cut as part of the automatic cycle.
07 · COUNT
Counting
Finished pouches are counted automatically.
08 · OUTPUT
Finished Pouch
The completed pouch exits for collection and secondary packaging.
PACKAGING FORMAT
Liquid Filling Machine Packaging Case
PRODUCTION LOGIC
Automatic Packaging with Fewer Manual Steps
The core value is the integration of forming, printing, filling, sealing, cutting and counting into one continuous pouch-packaging process.
Where This Pouch Packing Machine Fits
- Bagged drinking-water production
- Beverage pouch packaging
Sauce and vinegar pouch filling
- Other suitable liquid products confirmed by the project
SUITABLE LIQUIDS
SA
Sauce / Vinegar
DR
Beverages
MILK
Milk / Soy Milk
H₂O
Pure Water
WHY AQUACLARION
Connect Water Treatment and Filling as One Project
- Water-treatment and filling equipment from one supplier
- Customized water-treatment solutions available
- Online and video technical support
- Wooden-box packaging listed for the current machine
- Project configuration based on liquid, pouch and output requirements
Liquid Filling Production Line
CONFIGURE YOUR POUCH PACKING PROJECT
Send Us Your Liquid and Packaging Requirements
Please let us know the type of liquid product, the required filling volume, the size of the packaging bags, the target voltage, etc.
Liquid Filling Pouch Packing Machine FAQ
What steps can the machine complete automatically?
UV sterilization, bag formation, date printing, quantitative filling, sealing, cutting and counting are listed
What is the listed packing speed?
SJ-1000 is 33–37 bags per minute. SJ-2000 is 19-22 bags per minute.
What liquids canit pack?
Pure water beyera ges.mlk. soybean mks sauce.negar and yelow wihe are listed Finalsutablty should be confirmed for the actual lquid and packegng conditions
What fill-volume range does it support?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Can it be supplied with a water-treatment system?
As we are a manufacturer of source water treatment equipment, the bagged packaging aspect can be discussed as part of a wider production line.
