RO + EDI Ultrapure Water System
4000 LPH RO + EDI High-Purity Water System
A 4,000 L/h high-purity water-treatment system integrating pretreatment, reverse osmosis and continuous electrodeionization. The upstream RO configuration, EDI module, monitoring instruments and final polishing stages are selected according to the source-water analysis, RO permeate quality, application and required product-water conductivity or resistivity.
4,000 L/h Rated Capacity
MMF Pretreatment
ACF Pretreatment
Resin Softening
RO + EDI purification
Factory tested before shipment
BUILT AROUND YOUR WATER
Not Just a Standard EDI Machine
EDI performance depends heavily on the quality of the water entering the EDI module. For most projects, suitable RO permeate is used as the EDI feed.
RO Permeate First
The EDI section should receive suitable RO permeate. Upstream pretreatment and RO configuration are selected according to the original feed water.
Target Conductivity Matters
The polishing concept, EDI module selection and monitoring points should be matched to the verified final-water quality requirement.
Integrated Monitoring
Conductivity or resistivity monitoring can be arranged at key points across the RO and EDI treatment train according to the project.
Core Components of an RO System
Pump brands, piping materials and RO membrane options can be selected according to project budget, water quality, hygiene requirements and local service preferences.
Water Pump
Choose the pump brand according to project budget, duty point, local service requirements and customer preference.
Pipe Material
Select piping based on hygiene level, corrosion resistance, project budget and application requirements.
RO Membrane
Choose the RO membrane brand, element size, and array based on factors such as water quality, flow rate, local services, and budget.
TYPICAL CONFIGURATION
4 T/H RO + EDI System Specifications
The values below describe a typical design basis only. Final EDI configuration should be confirmed from the source-water analysis, RO permeate quality and required final-water standard.
- Product TypeRO + EDI High-Purity Water System
- Nominal Capacity4,000 L/h (4.0 m³/h)
- EDI Feed-Water RequirementSuitable for reverse osmosis permeate (typically allows a conductivity of ≤1–10 µS/cm)
- RO StageConfigured to provide suitable feed water for the EDI module
- EDI StageContinuous Electrodeionization Polishing
- PretreatmentDefined by original source-water analysis
- Water Quality MonitoringConductivity / resistivity monitoring as required
- Membrane SelectionThe 8040 model is typically used, with brands such as Ovay or Vontron
- AutomationAutomatic / PLC control options according to project requirement
- CustomizationPumps, UV, piping, controls and monitoring points etc..
TREATMENT PROCESS
How a 4000 LPH RO + EDI System Works
- Raw Water
- Pretreatment
- Single RO / Double RO
- RO Pure Tank
- EDI Feed Pump
- EDI Module
- UV / Polishing*
- High-Purity Water
*Optional post-treatment depends on the required application and final-water standard.
DESIGN EXAMPLE

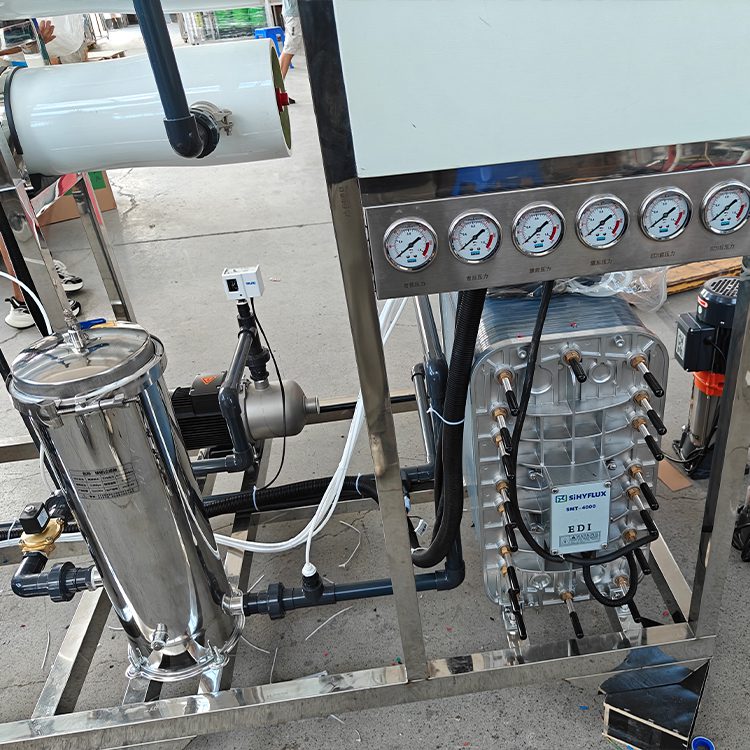

From RO Permeate to High-Purity Water
Aquaclarion first evaluates the original source water and required final-water standard. The pretreatment and RO stages are then designed to provide stable EDI feed water. The EDI module, instrumentation, storage and distribution system are selected around the required 4,000 L/h product-water flow and conductivity or resistivity target.
APPLICATIONS
Where 4 TPH RO + EDI Capacity Fits
A 4000 L/h RO + EDI system is suitable for projects that need a continuous supply of lower-conductivity, higher-purity process water, subject to the required final standard.
- Electronics and precision-component manufacturing
- Boiler-feed-water polishing
- Laboratory and analytical-water central supply
- Cosmetics and high-purity process water
- Medical, pharmaceutical or production projects where the specified water-quality standard is compatible with the selected treatment train
- Product-water resistivity: configured according to the required application; up to 18.2 MΩ·cm may be achievable under appropriately designed and controlled conditions.
WHY AQUACLARION
Designed for Real Project Conditions
- 10+ years of industrial water treatment experience
- Solutions supplied to customers in 78+ countries
- Water-analysis-based equipment selection
- Factory testing before packing and shipment
- Installation manuals, videos and remote technical support
What we need before quotation
Send us the feed-water source, available water-analysis report, required final-water flow, operating hours, application, target conductivity or resistivity, storage requirement and distribution-loop information. These details allow us to select the appropriate pretreatment, RO configuration and EDI module.
Can Electrodeionization treat raw water directly?
EDI is normally used as a polishing stage after suitable upstream purification, commonly reverse osmosis. The original source water still determines the pretreatment and RO design.
What feed water does the EDI module require?
The EDI module should receive suitable reverse osmosis (RO) permeate. Typically, the incoming liquid must have a conductivity of 1–10 µS/cm. However, the actual requirement depends on the selected EDI module and the project design.
Can the system achieve 18.2 MΩ·cm resistivity?
Water quality approaching 18.2 MΩ·cm may be achievable with an appropriately designed and controlled treatment and distribution system. It should not be treated as a universal specification for every RO + EDI project. The complete system may require additional polishing, sanitary storage, recirculation and properly compensated resistivity monitoring.
Can UV or additional polishing be added after EDI?
Yes. UV and other post-treatment or polishing stages can be added when required by the application and final-water quality specification.
How much water can the system produce per day?
At a rated product-water flow of 4,000 L/h, the theoretical output is up to 96 m³ per day when operated continuously for 24 hours. Actual daily output depends on operating hours, feed-water conditions, cleaning or maintenance time and system availability.
